Product Center

Leading digital image product supplier in China.

OK_ES201 OV6946/OV6948 Endoscopic Camera System

★Acquire original signal of CMOS sensor OV6946, really restore image details, rich color levels.

★FPGA image processing algorithm, realize noise reduction, sharpening, amplification and other functions with ultra-low latency.

★Signal line can be up to 4m.

★High reliability, more than 2000V isolation of the sensor and processing board.

★Video recording function, supports high profile H. 264 video compression.

Print
Share

  • Product Detail
  • Product Parameters
  • Download

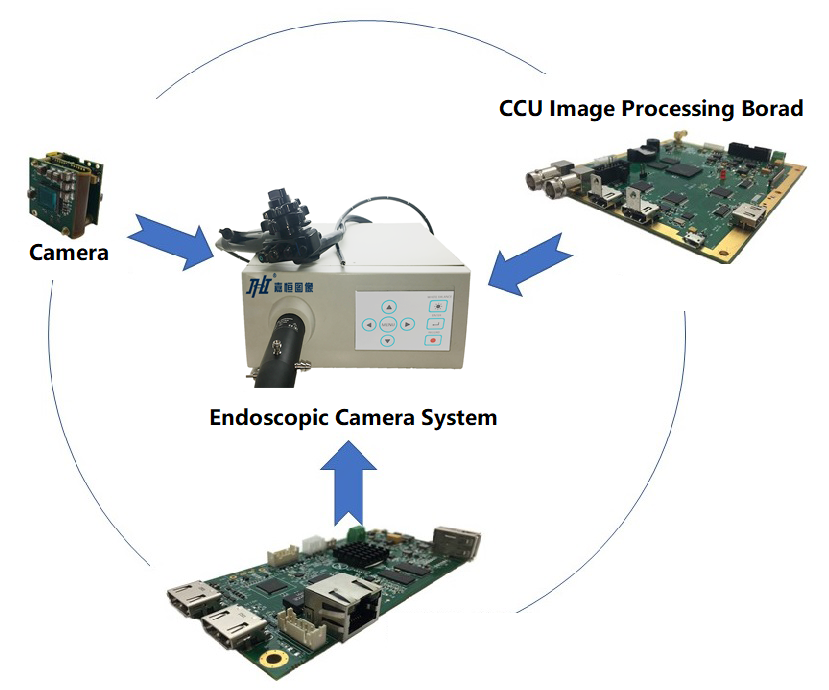

內(nèi)窺鏡圖片 en.png


CCU Image Processing Board


Model

OK_ES201-A

OK_ES201-B

Camera Chip

Motherboard with OV426

External connection OV426 board

Adaptive Sensor

OV6946（400×400）, 1/18” CMOS；OV6948(200×200)，1/36”CMOS

Output

DVI（1024×768P@60Hz）, CVBS（720×576）

SVIDEO（720×576）

Image Processing

Noise reduction, color rendition, edge   enhancement, contrast adjustment, image magnification, dead pixel elimination

View frame mode

Panoramic frame, octagonal frame, round   frame

White Balance

One button for automatic white balance

Photometry

2 types - Average/Peak, optional region

Parameter Adjustment

Brightness, R/G/B Saturation, Sharpness,   Gamma, Magnification

Panel Button

Menu, White Balance, Freeze, Save etc.

Image Saving

Resolution：720 x 576,  Format：BMP,  Quality：Non-destructive

Video Saving

Resolution：720×576,  Format：H.264, Code Rate：4Mbps

Memory

U disk or mobile hard disk in FAT32   format

Menu Language

Chinese, English

Dimension

Signal processing board 16 x 36×10（mm）

Image processing board 140×140×20（mm）

Power

Voltage：12V，Current：2A
