Product Center

Leading digital image product supplier in China.

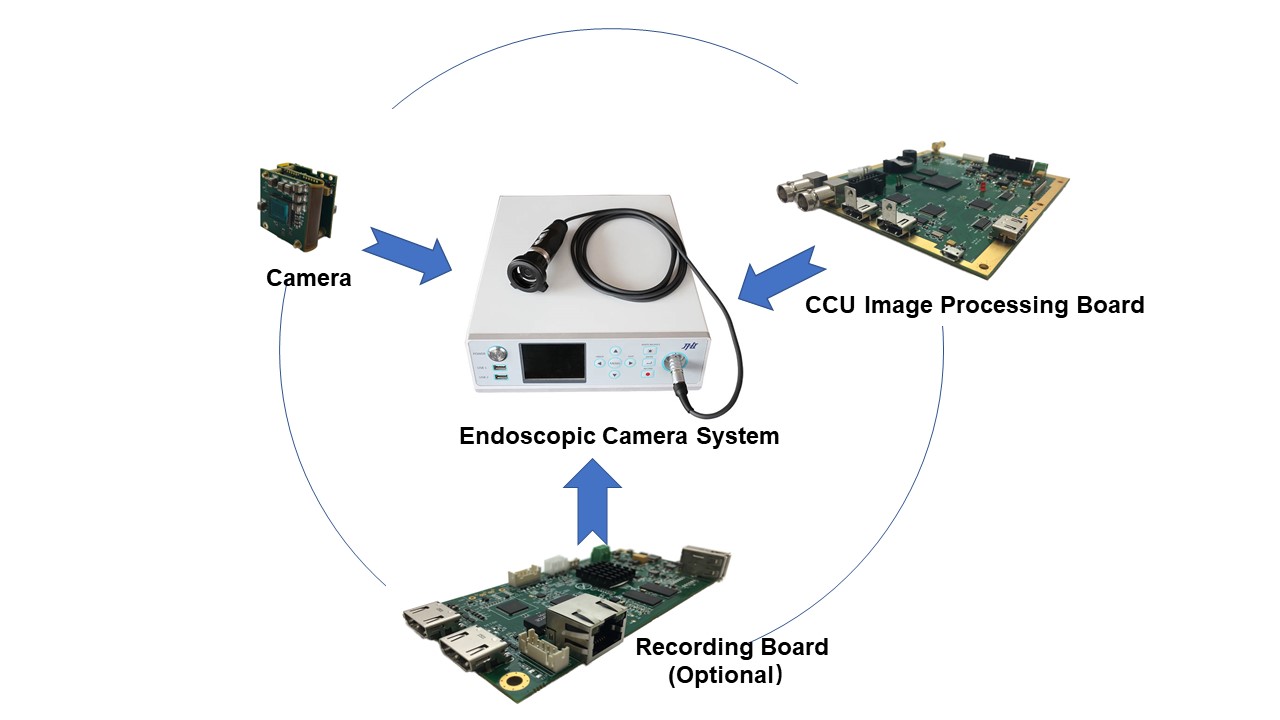

OK_EH301(EH302)&OK_MC301(MC302) Full HD Endoscopic Camera System

★Full HD resolution 1920 x 1080 P@60hz.

★True color, multiple color modes for light sources.

★FPGA image processing algorithm, realize noise reduction, sharpening, amplification and other functions with ultra-low latency.

★L(fēng)ow power consumption for handle, simple connection, digital transmission without interference, good uniformity.

★Flexible photometry algorithm for complex surgical scene.

Print
Share

  • Product Detail
  • Product Parameters
  • Download

Camera


Model

OK_MC301

OK_MC302

OK_MC303

Image Sensor

1/2.8”CMOS

1/1.8”CMOS

1/2”CMOS

Resolution

1920 x 1080

Frame Rate

60f/s

Exposure

Rolling

Global

Rolling

Button Function

Freeze, white balance etc.

Dimension

26x26x26（mm）






CCU Image Processing Board


Model

OK_EH301

OK_EH302

Output

HDMI（1080  P@60Hz）× 2

HDMI（1080  P@60hz）, DVI（1080 P@60hz）

SDI（1080  P@60Hz）× 2

SDI（1080  I@60hz）,CVBS（720 x 576）

Image Processing

Noise reduction,  color rendition, edge enhancement, contrast adjustment, image magnification, dead  pixel elimination

Light Source

Multiple  modes for light sources of LED，Xenon Lamp etc.

White Balance

One button  for automatic white balance

Photometry

2 types  - Average/Peak, optional region

Parameter  Adjustment

Brightness,  R/G/B Saturation, Sharpness, Max. Gain, Gamma, Magnification, Mirror

Panel Button

Menu,  White Balance, Freeze, Save etc.

Image Saving

Resolution：1920  x 1080, Format：BMP,

Quality：Non-destructive,  Memory：SD card

Menu Language

Chinese，English

Dimension

145×125×19(mm)

Power

12V，2A




Recording Board(Optional)



Model

OK_HD130

Video Saving

Resolution：1920 x 1080, Format：TS

Code Rate：19Mbps

Image Saving

Resolution：1920x1080, Format：JPG

Interface

Memory：USB, Network port

Storage Medium

U disk, Mobile hard disk

Dimension

126×61×19(mm)

Power

12V，1A
