M0814-MP2 Computar

打印
Share

  • 產品詳情
  • 產品參數
  • 資料下載

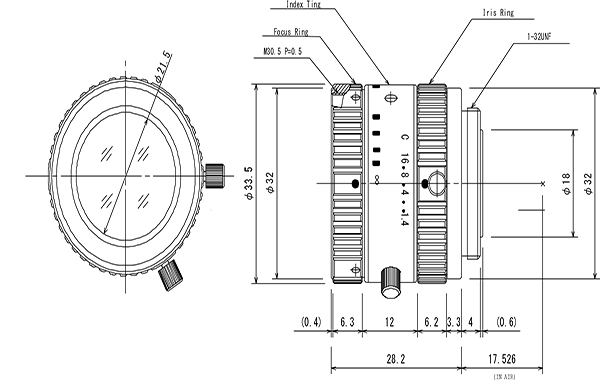

Dimensions

f=8mm  F1.4

ｆor 2/3 type Megapixel  Cameras

C-Mount

Model No.

M0814-MP2

Effective

Lens Aperture

Front

φ21.5mm

Focal Length

8mm

Rear

φ12.0mm

Max. Aperture Ratio

1:1.4

Distotion

2/3type

-0.1%(y=5.5)

Max. Image Format

8.8mm x 6.6mm(φ11mm)

1/2type

-1.1%(y=4.0)

Operation Range

Iris

F1.4 ‐ F16C

Back Focal Length

13.1mm

Focus

0.1m ‐ Inf.

Flange Back Length

17.526mm

Control

Iris

Manual

Mount

C-Mount

Focus

Manual

Filter Size

M30.5 P=0.5mm

Object Dimension  at M.O.D

2/3 type

12.1cm x 9.0cm

Dimensions

φ33.5mm x  28.2mm

1/2 type

8.7cm x 6.5cm

Weight

62.6g

Angle of View


D

2/3 type

67.1°

1/2 type

51.9°



H

56.3°

42.5°


V

43.7°

32.4°


Operating Temperature

-10℃ ‐ +50℃


M.O.D : Minimum Object Distance
